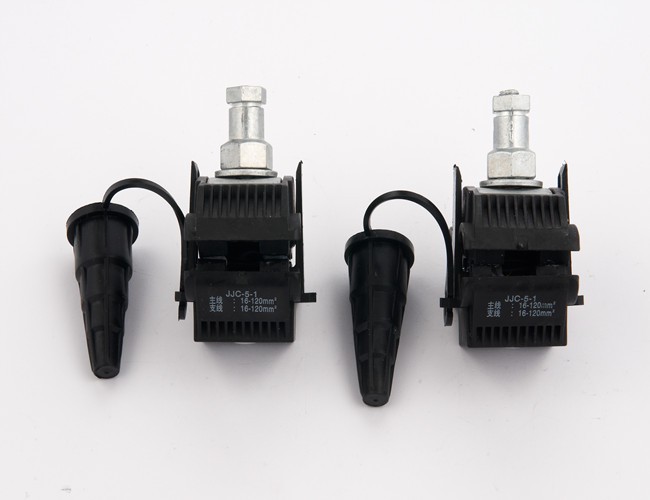

JJC-5-1绝缘穿刺线夹
低压(≦1KV)JJC系列绝缘穿刺线夹选型表:
序号 |
型号 |
主截面(mm²) |
支线截面(mm²) |
备注 |
1 |
101/JJC-1 |
1.5-25 |
1.5-10 |
|
2 |
EP/JJC-2 |
16-95 |
1.5-10 |
|
3 |
2- 95/JJC-3 |
16-95 |
4-50 |
|
4 |
2-150/JJC-4 |
50-150 |
6-50 |
|
5 |
3-95/JJC-5 |
25-95 |
25-95 |
|
6 |
3-120/JJC-5-1 |
16-120 |
16-120 |
|
7 |
4-150/JJC-6 |
50-150 |
50-150 |
|
8 |
6/JJC-7 |
120-240 |
25-120(150) |
|
9 |
7/JJC-7-1 |
150-240 |
6-25 |
|
